Description

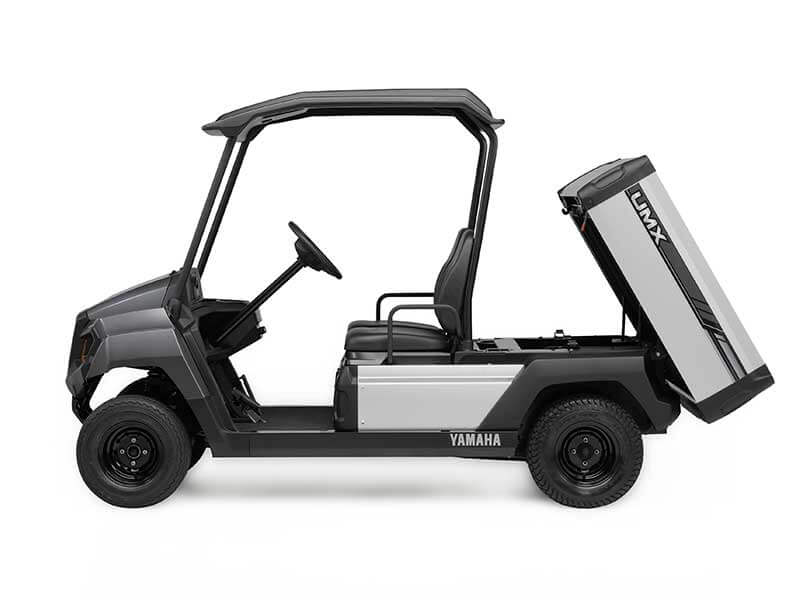

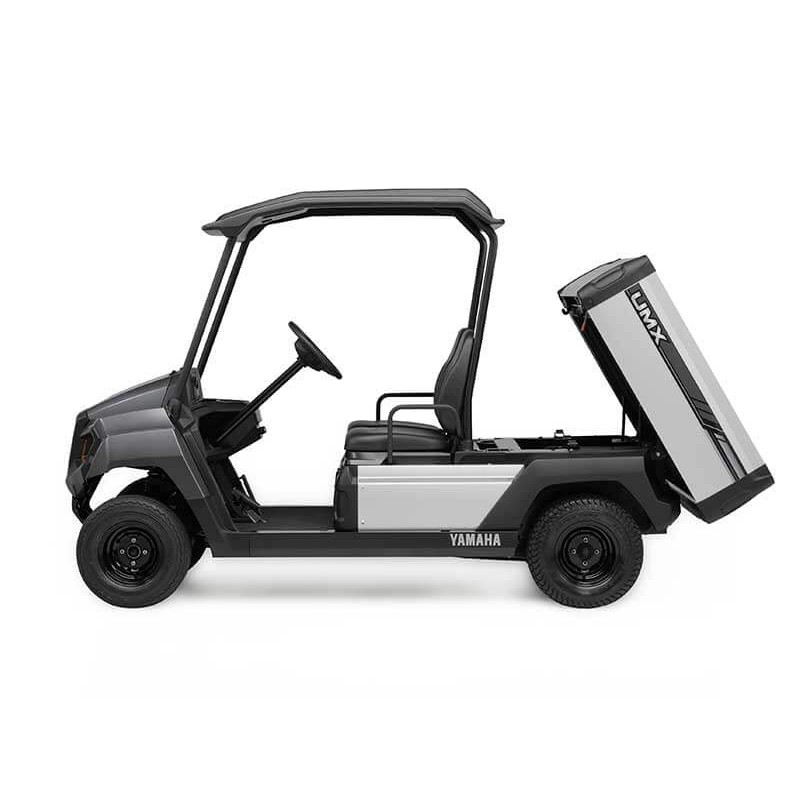

The all-new UMX takes utility golf car strength, resourcefulness, dependability and reliability to new heights. With space and comfort for up to two adults, the UMX is equipped with a substantial cargo bed measuring in at 104.6 cm long x 116.6 cm wide x 30.2 cm deep. Not only will your maintenance team have more volume to work with, they'll find confidence in loading it too with a max cargo capacity of 360kg.
Technical Specification
- Engine Type 48-volt AC
- Output Rating (kW) 5.0 (60min)
- Engine Management NEOS 350 amp AC controller by Toyota Industries Corporation
- Starter System Six 8-volt Trojan T-105 Batteries
- Max Speed (KPH) 31.40
- Seating Capacity 2
- Frame Type HybriCore™ Chassis
- Steering Self-compensating double reduction helical rack-and-pinion
- Suspension Front Tru-Trak II™ fully independent automotive-style strut suspension
- Suspension Rear Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbers
- Brakes Self-adjusting mechanical drum brakes
- Tyres Front 20x10-10 4ply Monitor K389
- Tyres Rear 20x10-10 4ply Monitor K500
- Length (mm) 3032
- Width (mm) 1253
- Height (mm) 1824 (with suntop)
- Wheelbase (mm) 1961
- Ground Clearance (mm) 115
- Minimum Turning Radius (mm) 3980
- Dry Weight (kg) 639.6 (with Trojan T-105 batteries) read more..
