Description

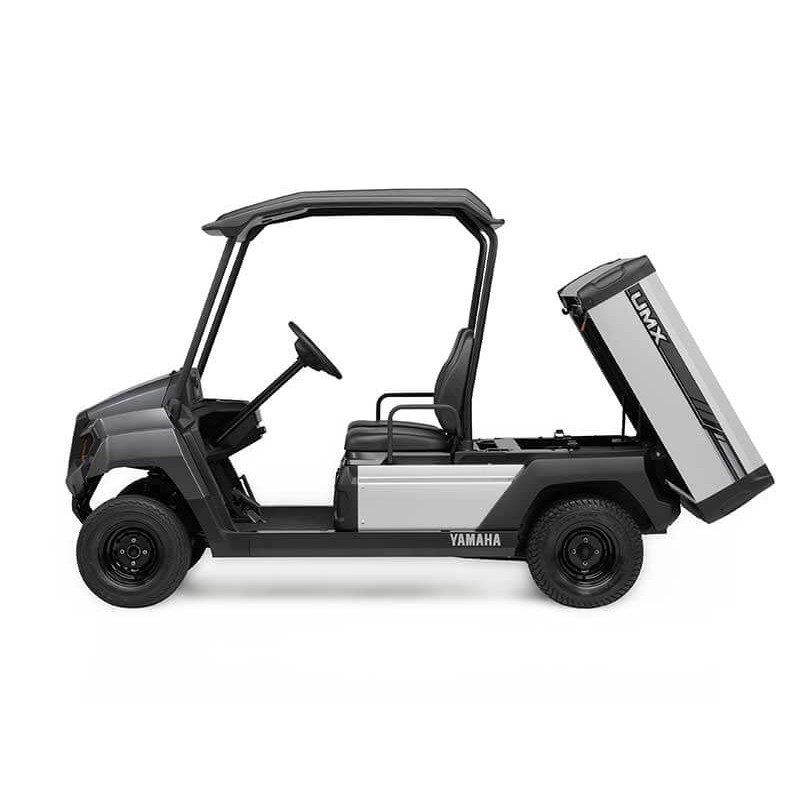

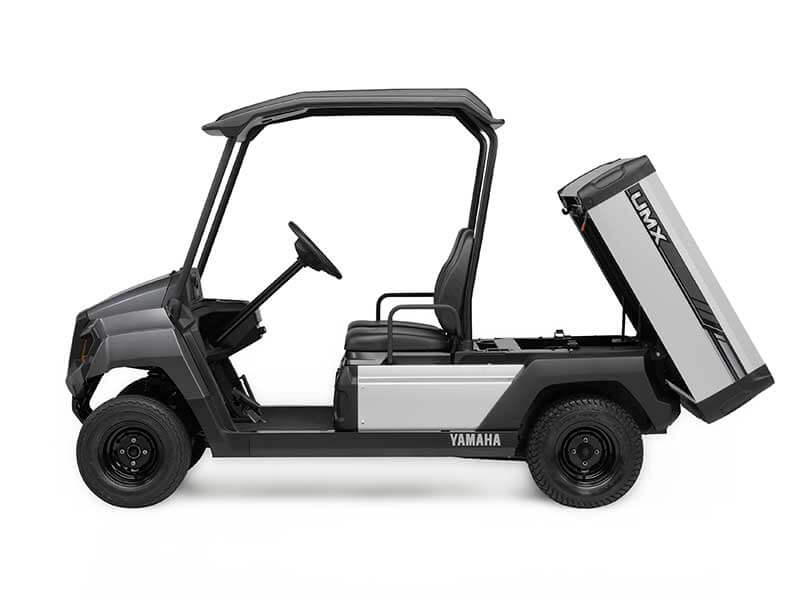

The all-new UMX takes utility golf car strength, resourcefulness, dependability and reliability to new heights. With space and comfort for up to two adults, the UMX is equipped with a substantial cargo bed measuring in at 104.6 cm long x 116.6 cm wide x 30.2 cm deep. Not only will your maintenance team have more volume to work with, they'll find confidence in loading it too with a max cargo capacity of 360kg.
Technical Specification
- Engine Type Low Emission Single Cylinder, 60 Incline OHV
- Displacement (cc) 402.0
- Bore x Stroke (mm) 85 x 63
- Output Rating (kW) 14.25
- Lubrication System Splash-style positive oil lubrication
- Ignition Transistor
- Engine Management Electronic Fuel Injection
- Starter System Starter / Generator
- Oil Capacity (L) 1
- Fuel Tank Capacity (L) 20.0
- Max Speed (KPH) 31.40
- Seating Capacity 2
- Frame Type HybriCore™ Chassis
- Steering Self-compensating double reduction helical rack-and-pinion
- Suspension Front Tru-Trak II™ fully independent automotive-style strut suspension
- Suspension Rear Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbers
- Brakes Self-adjusting mechanical drum brakes
- Tyres Front 20x10-10 4ply Monitor K389
- Tyres Rear 20x10-10 4ply Monitor K500
- Length (mm) 3032
- Width (mm) 1253
- Height (mm) 1824 (with suntop)
- Wheelbase (mm) 1961
- Ground Clearance (mm) 115
- Minimum Turning Radius (mm) 3980
- Dry Weight (kg) 455.4 Read more..
